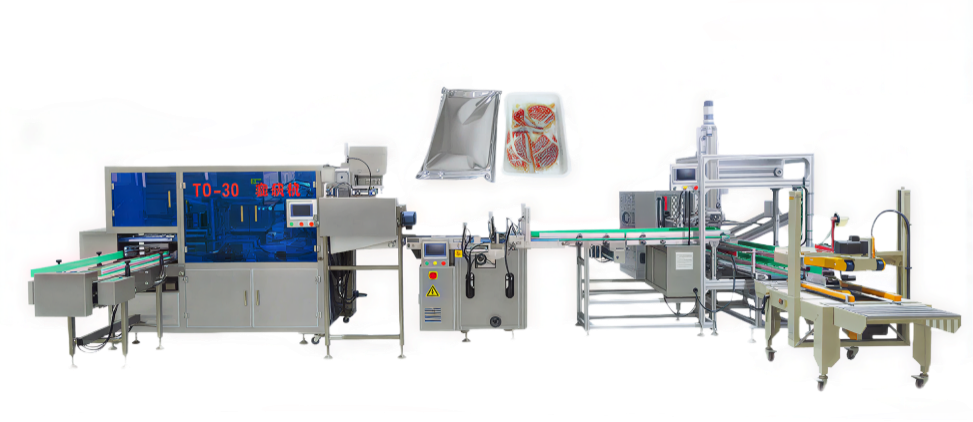

This equipment is suitable for packaging food products such as milk powder, oatmeal, biscuits, sachima (a type of Chinese pastry), seafood, and meat products.
- 1、Features automatic bag picking, bag feeding and opening, material pushing, bag pushing, and sealing mechanisms.
- 2、Uses automatic material handling or manual feeding to automatically load the inner-packaged products into the bags.
- 3，Easily connects to production lines, saving labor costs and improving production efficiency.
- 4、Simple specification changeover with automatic memory function, reducing debugging time.
- 5、The main machine uses multi-axis servo independent drive, resulting in fast response speed, precise movements, and accurate sealing.
- 6、Employs photoelectric detection; if bag opening is unsuccessful, no bag is pushed, maximizing material savings.
- 7、Capable of vacuum packaging, resulting in an aesthetically pleasing appearance.
| Project/Model | XL-30TD |
| Speed | 5-15 bags/minute |
| Maximum Size | L500*XW380*XH80 |
| Minimum Size | L100*XW180*XH25 |
| Total Power | 3.2KW |
| Power Supply | 220V/50HZ |
| Host Dimensions | L1350*W1200WH1800mm |
| Conveying Dimensions | L3150*W650*H800mm |
| Air Source Pressure | 0.1-0.6Map |
| Noise | <60分贝 |
| Weight | 1500kg |
