High-quality products at reasonable prices
Providing excellent quality at affordable prices,
making laser technology accessible to all.
Precision design, flexible use
Superior German engineering and outstanding component design
ensure reliable, high-quality systems
that can handle a wide range of applications.
Unlimited Possibilities | Technological Advantage
Intelligent management of your marking process, from the workshop to automated production lines
Enabling you to easily complete multiple tasks,
including repeated checks and historical data retrieval.
Data can be imported externally or obtained from a barcode scanner.

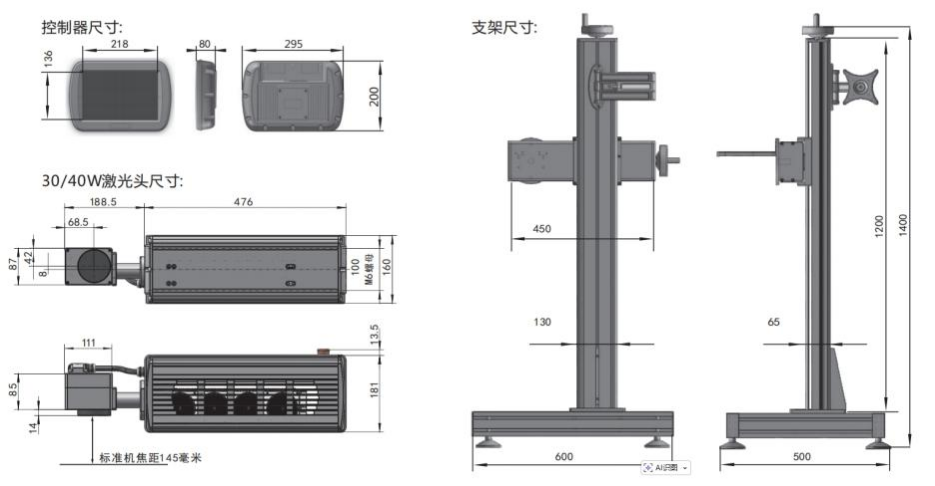

Product dimensions
Main Technical Parameters Of The Ultraviolet Series
Main configuration list
| Subsystem Name | Brand | Model | Quantity | Origin |
| laser | Nanjing Chenruida | C02-30/40/60 | One unit | China – Nanjing |
| galvanometer | Shenzhen Zhibo Technology | ZB2D10C10600 | one | China – Shenzhen |
| Field lens | Shenzhen Jinggezi | JGZL1-10.6-150-110-8 | one | China – Shenzhen |
| Beam expander | Shenzhen Jinggezi | JG-BEX-10.6-3C | one | China – Shenzhen |
| power supply | Mean Well (Taiwan) | LRS-600-48W | One unit | China-Taiwan |
| Software control system | Shenyang Baichuang | 10.2-inch external control screen | One unit | China – Shenyang |
| Photoelectric switch | Zhejiang Xinshe Electric | FZ2-22N | one | China – Zhejiang |
| Synchronizer | Changchun Yifang | 38S6-2500 | one | China – Changchun |
| Dual red light focusing | Shenzhen Zhibo Technology | ZB2D10C10600 | set | China – Shenzhen |
| Two-dimensional scaffold | Produced by the company | SY02415-1500 | set | China |
Designed for peace of mind
Simple and clear – The large, “what you see is what you get” color touchscreen provides intuitive icons and shortcuts for user-friendly operation. Safety features are quick and easy to use, and information loading and Ethernet access can be conveniently completed via standard USB ports.
It can adapt to your development needs, allowing you to easily upgrade your marking machine’s power without changing the entire system. Highly flexible, the laser solution can process various workpieces (brittle, soft, hard, surface removal).
60W: Powerful solution, suitable for applications requiring high speed and depth. Can be used for engraving.
30W: Economical solution, suitable for conventional production lines.
40W: Versatile high-performance solution, for high-speed production lines.
